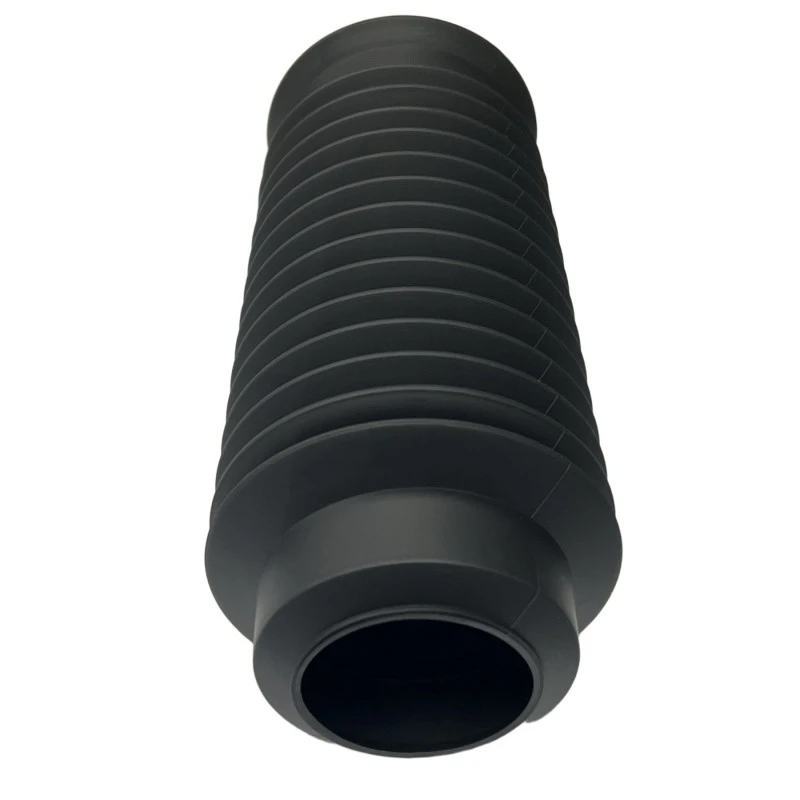

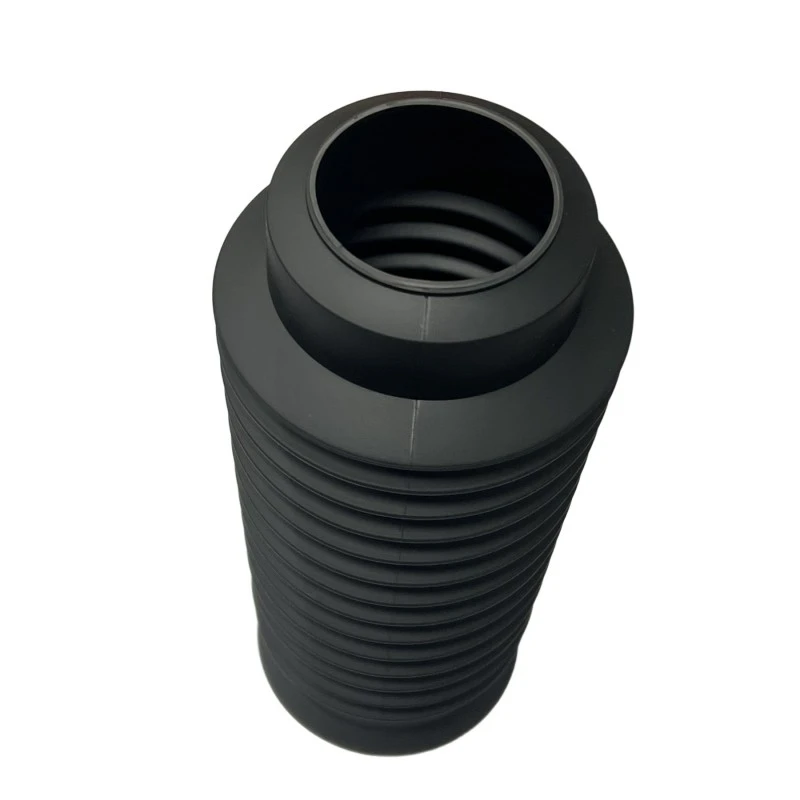

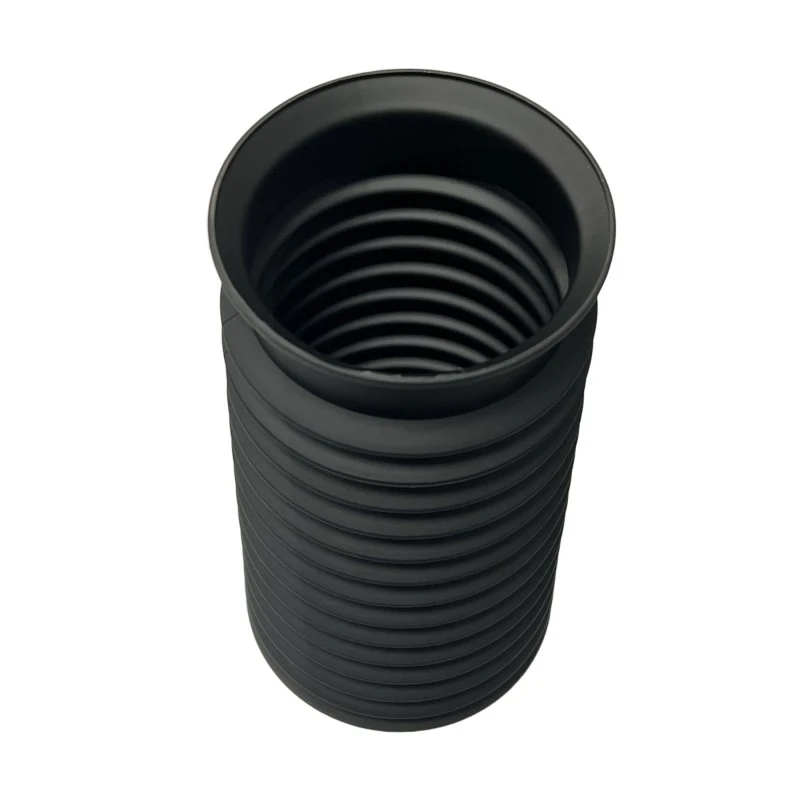

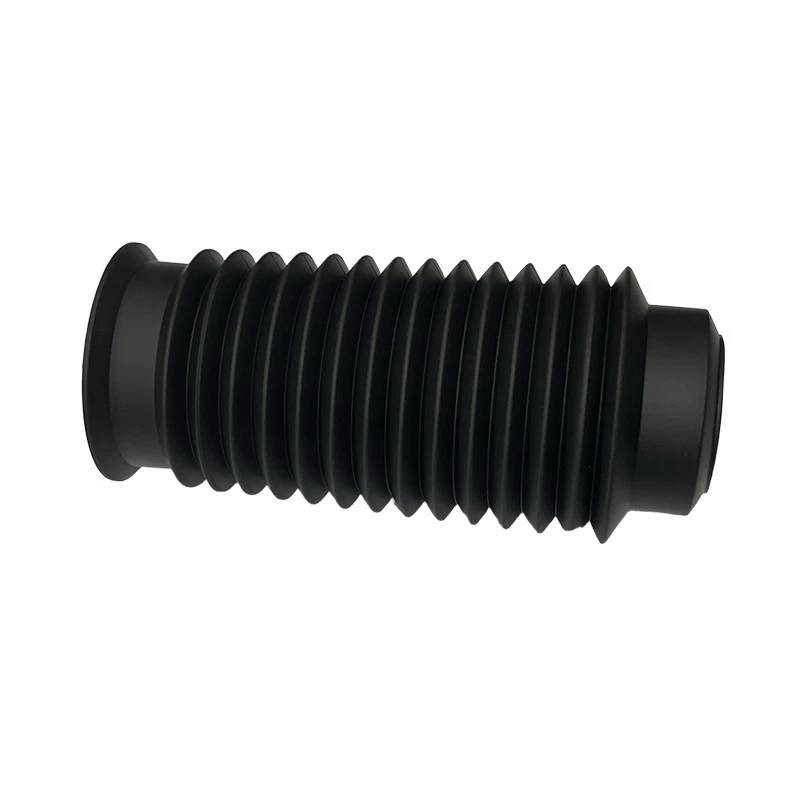

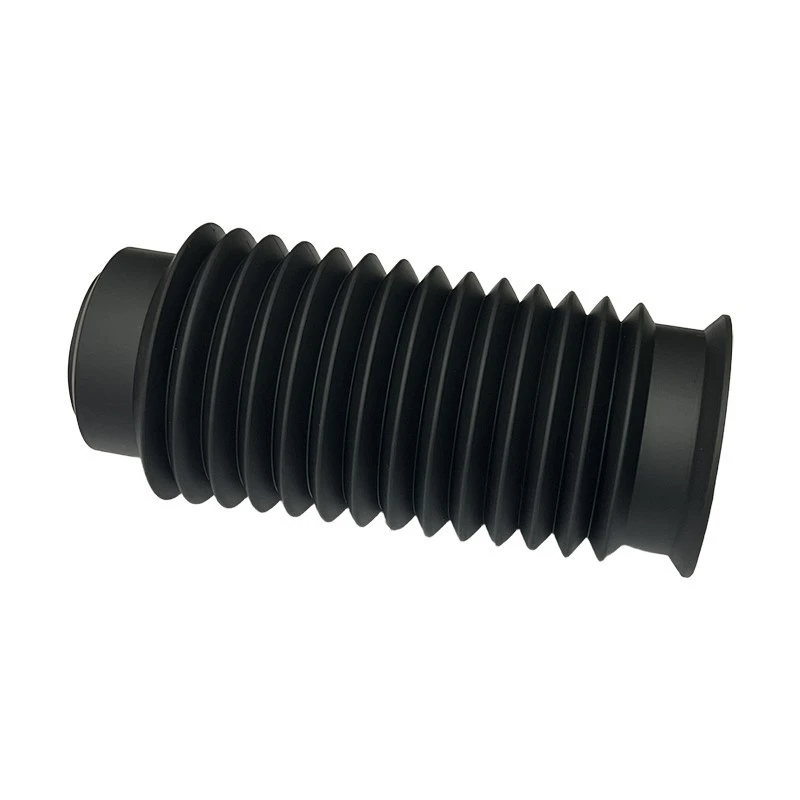

Flexible Structure Corrugated Plastic Dust Cover

The Flexible Structure Corrugated Plastic Dust Cover developed by XIAYI is designed to protect these vulnerable components during continuous suspension movement. Its bellows-style geometry expands and contracts with the shock absorber stroke while creating a physical barrier against external contaminants. Depending on the application, XIAYI can provide high-elastic modified plastic or wear-resistant reinforced plastic configurations for passenger vehicles, motorcycles and construction equipment.

Protection Starts Before Contaminants Reach the Seal

Following Suspension Movement

A Flexible Structure Corrugated Plastic Dust Cover must move with the suspension rather than resist it. The corrugated profile provides repeated expansion and compression space, allowing the protective component to follow piston rod movement without excessive bending stress. This helps reduce cracking and structural collapse during frequent suspension cycles.

Creating a Barrier Around the Piston Rod

The cover surrounds the exposed working area and helps prevent sand, mud, water and small road debris from directly reaching the rod and oil seal. By reducing contamination at the source, it helps lower abrasive wear on downstream sealing components.

Material Selection for Different Environments

High-Elastic Modified Plastic

For passenger vehicles and conventional outdoor applications, the high-elastic formulation provides a balance between flexibility, weather resistance and dimensional recovery. The specified working range is -40°C to 105°C, making it suitable for seasonal temperature changes and regular road use.

Wear-Resistant Reinforced Plastic

For construction machinery and other demanding environments, the reinforced formulation provides improved resistance to gravel impact, mud, ozone and outdoor exposure. Its specified working range reaches -40°C to 120°C, supporting applications where mechanical impact and environmental exposure are more severe.

Structural Details That Affect Service Life

Corrugated Geometry

The uniform bellows profile distributes repeated expansion and contraction across multiple folds instead of concentrating movement at one rigid section. This helps maintain the protective shape during long-term suspension travel.

Secure Dimensional Fit

Precision molding controls the mounting diameter, overall length and concentricity. A properly matched cover stays in position during vibration and movement, reducing the risk of loosening or separation from the shock absorber assembly.

Resistance to External Damage

The reinforced material options are designed to withstand common external hazards such as gravel impact, muddy water and ultraviolet exposure. This is particularly important for components installed underneath vehicles or on exposed construction equipment.

Technical Selection Guide

How It Helps Reduce Maintenance Problems

Protecting the Oil Seal

The Flexible Structure Corrugated Plastic Dust Cover does not replace the oil seal. Instead, it works upstream by reducing the amount of contamination that reaches the sealing area. Cleaner piston rod surfaces can help reduce abrasive particles entering the dynamic sealing interface.

Reducing Premature Cover Failure

The combination of flexible geometry and application-specific plastic formulations addresses common problems such as cracking, hardening and permanent deformation. This helps maintain protection for longer periods and reduces the need for frequent accessory replacement.

Supporting Long-Term Suspension Performance

When the protective cover remains intact, the piston rod and associated sealing components receive better environmental protection. This can contribute to more predictable maintenance intervals for the overall damping assembly.

Application Scenarios

The Flexible Structure Corrugated Plastic Dust Cover is suitable for passenger cars, SUVs, MPVs, motorcycles, electric two-wheelers, commercial vehicles, engineering machinery and other equipment using exposed shock absorber or damping components. XIAYI can also develop different dimensions, wave profiles and material configurations for OEM assembly and aftermarket replacement requirements.

Real Application Experience

Urban SUV Daily Commuting Application

A domestic auto maintenance chain experienced repeated cracking of conventional PP/PE dust covers on urban SUV models after approximately 6--8 months of use. After switching to the XIAYI solution, the modified high-elastic material and flexible structure remained intact during 18 months of follow-up, while the related shock absorber oil seal failure rate decreased by 65%.

Northern Motorcycle Low-Temperature Application

A northern China two-wheeler manufacturer needed a protective component capable of handling winter temperatures of -30°C to -40°C. After adopting the low-temperature-resistant version, the covers maintained their flexibility and telescopic movement through one full seasonal cycle without hardening or cracking.

Engineering Machinery Application

A Southeast Asian construction equipment manufacturer used the reinforced version in machinery exposed to mud, gravel and strong sunlight. Conventional covers required replacement every 3--4 months, while the XIAYI products remained functional after 12 months of continuous field operation, extending the replacement interval by more than three times.

Frequently Asked Questions

Why is a flexible corrugated structure important?

Shock absorbers continuously compress and rebound. A corrugated structure provides sufficient deformation space, allowing the cover to follow the suspension stroke without concentrating excessive stress in one area. This helps reduce cracking and deformation.

Which material should be selected for my application?

The high-elastic modified plastic version is suitable for general automotive and motorcycle applications, particularly where flexibility and temperature adaptability are priorities. The wear-resistant reinforced version is better suited to construction machinery, gravel roads and environments involving stronger impact or contamination.

Can XIAYI customize the dimensions?

Yes. XIAYI supports OEM/ODM customization of mounting diameter, overall length, corrugation dimensions and material formulation. Products can be developed according to the customer's shock absorber dimensions and operating environment.

Can the cover be supplied for different vehicle models?

Yes. XIAYI can produce different specifications for passenger vehicles, motorcycles, commercial vehicles and engineering machinery. The mounting dimensions and material configuration can be adjusted according to the application.
