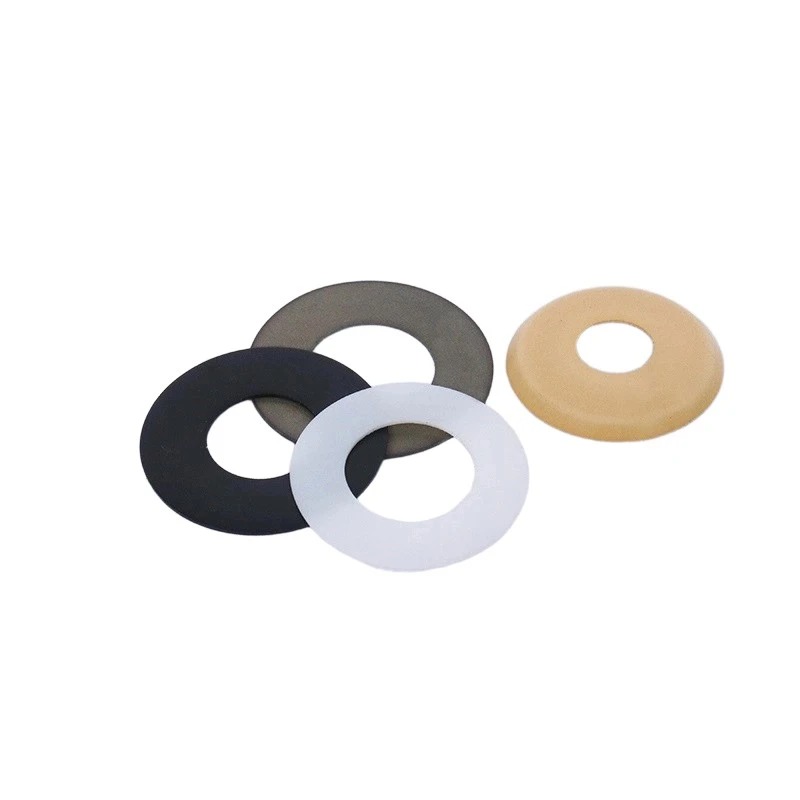

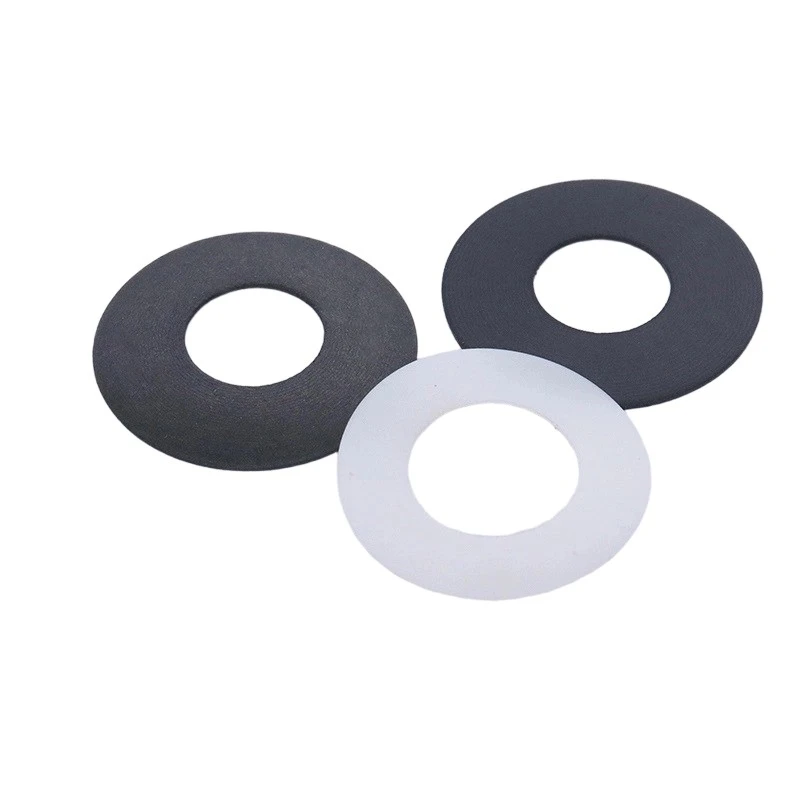

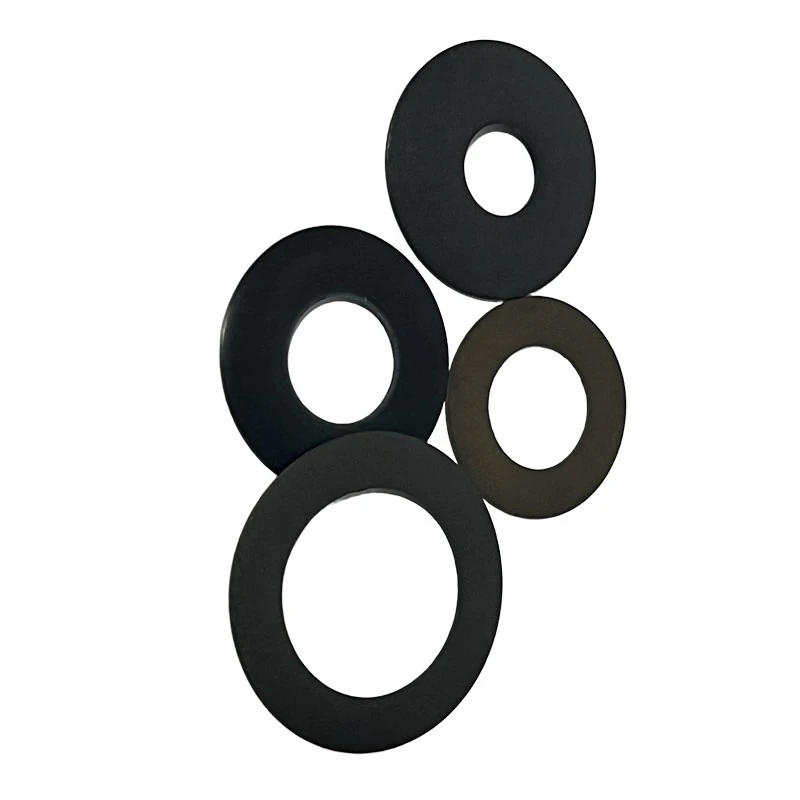

Composite PTFE Piston Ring

The Composite PTFE Piston Ring effectively addresses common issues such as damping fluctuation, abnormal noise, cylinder scratching and shortened service life caused by traditional PTFE components. With stable batch performance and strong adaptability to complex operating conditions, XiaYi provides reliable PTFE solutions for global automotive and machinery manufacturers.

Material Structure & Performance

Composite Formula

XiaYi Composite PTFE Piston Ring uses a reinforced PTFE material system designed for repeated sliding and friction inside shock absorber assemblies. Compared with conventional single-material PTFE rings, the composite structure provides better resistance to wear, deformation and temperature changes while retaining the low-friction characteristics of PTFE.

Stable Sliding

The optimized material structure helps maintain consistent contact between the piston ring and mating components during repeated movement. This supports smoother piston travel, more stable damping and lower risk of abnormal vibration during long-term operation.

Manufacturing Quality

Process Control

XiaYi controls the key stages of material preparation, mixing, compression molding, sintering, precision machining and surface finishing. Potential issues such as uneven material dispersion, dimensional variation and surface defects are identified during production rather than only after assembly.

Precision Inspection

The production process includes dimensional inspection, surface quality verification and batch traceability. XiaYi operates under an IATF 16949:2016 quality management system to provide consistent products for automotive and engineering machinery customers.

Performance Comparison

Key Performance

Application Difference

The composite structure is particularly useful where the piston ring is exposed to repeated reciprocating movement, vibration and changing temperatures. It provides a practical option for shock absorber systems that require a balance between friction control, durability and dimensional stability.

Customer Problems & Solutions

Wear and Damping Drift

Continuous friction can gradually wear conventional PTFE rings, changing the contact condition between the piston and cylinder. This may result in damping variation, vibration or increased maintenance requirements.

XiaYi improves wear resistance through composite material reinforcement and controlled processing, helping the ring maintain its working geometry during extended operation.

Surface Damage

Rough surfaces or residual burrs can increase friction and potentially damage mating components. XiaYi uses precision machining and finishing processes to improve surface quality and reduce the risk of scratching and premature component wear.

Quality Management

Risk Prevention

XiaYi applies PFMEA-based process analysis to identify potential risks throughout production. Material mixing, molding pressure, sintering temperature, machining dimensions and surface finishing are controlled according to defined process requirements.

Batch Consistency

For mass production, consistent dimensions and material properties are essential for shock absorber manufacturers. XiaYi combines process monitoring, precision inspection and production records to reduce variation between batches and support stable assembly performance.

Practical Application

New Energy Vehicle Project

A domestic new energy vehicle manufacturer previously experienced damping attenuation, abnormal noise and occasional oil leakage after 30,000-50,000 kilometers when using conventional piston rings in compact SUV shock absorber assemblies.

After replacing the components with XiaYi Composite PTFE Piston Ring, continuous road testing and market data monitoring showed stable damping performance throughout the testing period. No cylinder scratching or oil leakage was observed, while the effective service life exceeded 100,000 kilometers.

Project Results

The project achieved an 85% reduction in overall shock absorber failure rate. The improved durability and stable performance also reduced after-sales maintenance pressure, supporting a long-term supply relationship between XiaYi and the vehicle manufacturer.

Application Fields

Automotive Systems

The product is suitable for shock absorber piston assemblies used in passenger cars, SUVs, new energy vehicles and commercial vehicles. It can be selected for applications requiring stable friction behavior and extended component durability.

Engineering Machinery

For loaders, excavators and other construction machinery, the product can withstand repeated vibration, reciprocating movement and demanding operating conditions, providing reliable piston guidance and wear control.

Product Selection

Standard Applications

For conventional vehicle shock absorbers, material and dimensions can be selected according to the piston structure, operating temperature, load and movement frequency. XiaYi can provide suitable PTFE material solutions based on the customer's application requirements.

Customized Requirements

For OEM and replacement projects, XiaYi supports customized dimensions and material configurations according to drawings, piston specifications and actual working conditions. This helps ensure compatibility with the customer's shock absorber assembly.

FAQ

What are the main advantages of the product?

XiaYi Composite PTFE Piston Ring combines reinforced PTFE material with precision manufacturing to provide good wear resistance, stable friction performance and dimensional consistency. It is designed for long-term reciprocating movement in shock absorber assemblies.

Can XiaYi provide customized sizes?

Yes. XiaYi can customize dimensions and material configurations according to customer drawings, piston dimensions and application conditions, making it suitable for OEM and aftermarket projects.

How does XiaYi control product quality?

XiaYi follows an IATF 16949:2016 quality management system and controls raw materials, production processes, dimensional accuracy, surface quality and batch traceability to maintain consistent product performance.

What applications can use this product?

It can be used in shock absorber systems for passenger cars, SUVs, new energy vehicles, commercial vehicles and construction machinery, particularly where wear resistance and stable piston movement are important.
