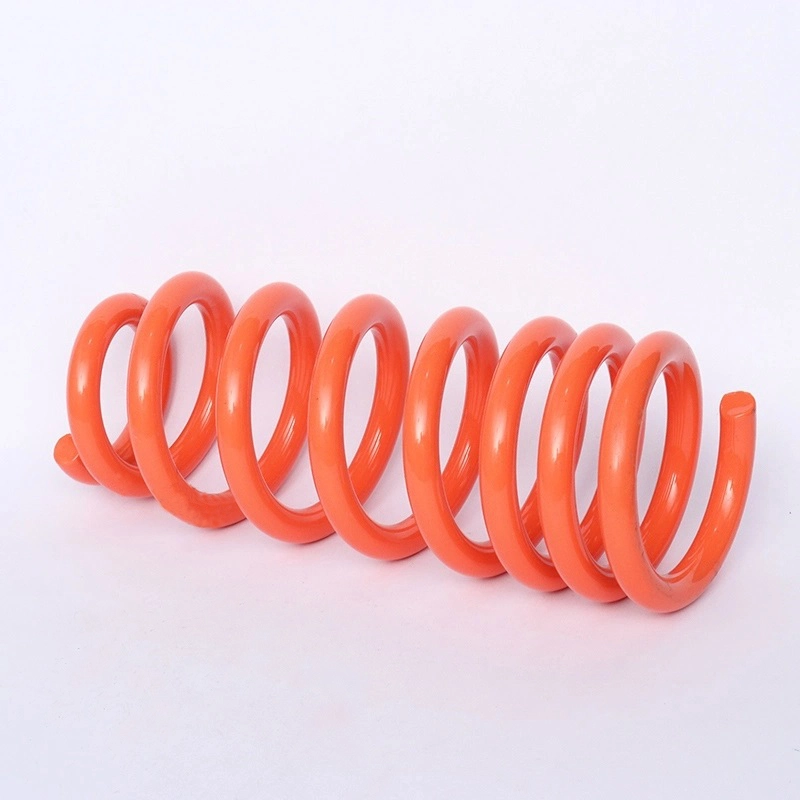

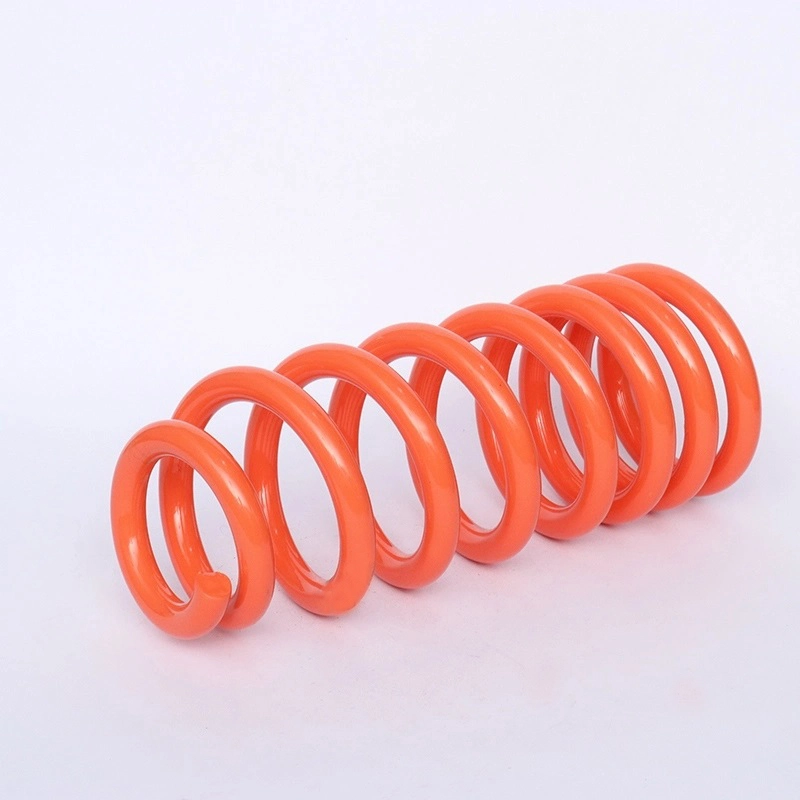

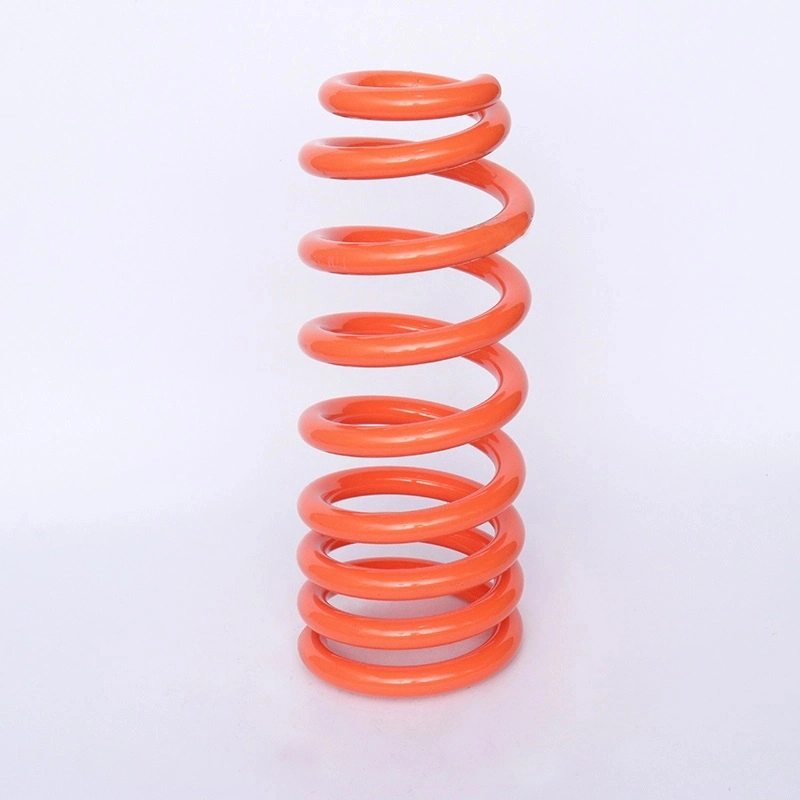

Heat-Treated Alloy Steel Coil Spring

XiaYi Heat-Treated Alloy Steel Coil Spring is developed around the relationship between alloy composition, heat treatment and suspension performance. Instead of using one material grade for different applications, XiaYi provides several alloy systems to match different load levels, driving conditions and environmental requirements.

Conventional low-grade spring steel may experience fatigue fracture, permanent sagging, corrosion and elastic performance loss after repeated loading. XiaYi uses controlled alloy composition together with standardized quenching and tempering to improve the internal metallographic structure and maintain more stable mechanical properties during long-term compression and recovery.

Alloy Options

Four Material Grades

XiaYi provides four main alloy systems for different vehicle and equipment requirements.

Material Selection

Material selection should be based on actual load, operating frequency and environmental conditions. For daily passenger vehicles, 60Si2Mn provides a practical balance between mechanical performance and procurement cost. Chrome-silicon alloy is more suitable for vehicles exposed to frequent cyclic loading, while chrome-vanadium alloy is intended for applications with greater impact and load variation. Special alloy grades can be considered for coastal, cold or chemically corrosive environments.

Performance Data

Mechanical Performance

The following data provides a reference for comparing the four alloy systems used by XiaYi.

Working Condition Match

Different working environments place different demands on spring materials. XiaYi uses material selection to address these differences rather than applying the same specification across all vehicle models.

Failure Control

Common Spring Problems

Heat-Treated Alloy Steel Coil Spring failure is often related to unsuitable material selection, insufficient heat treatment or repeated loading beyond the material's intended working range. XiaYi addresses these issues through alloy selection and controlled thermal processing.

Heat Treatment Control

Heat treatment is used to establish the required hardness and internal structure of the spring steel. XiaYi applies standardized quenching and tempering procedures and monitors processing parameters during production. This helps reduce performance variation caused by inconsistent thermal treatment and supports stable elastic recovery during repeated compression.

Product Advantages

Controlled Material Quality

Raw material impurity content is controlled at ≤0.01%. High-purity alloy steel helps reduce potential internal defects that can become fatigue crack initiation points during long-term cyclic loading.

Stable Elasticity

The selected chrome-silicon alloy can achieve an elastic retention rate of up to 95% in the provided test data, while the special alloy grade reaches up to 98%. This helps reduce permanent sagging under repeated compression when the Heat-Treated Alloy Steel Coil Spring is correctly matched to the vehicle load.

Fatigue Performance

Selected alloy grades are tested through extended cyclic loading. The special alloy version reaches up to 1.5 million fatigue cycles in the supplied test data, providing a reference for applications requiring long-term repeated loading.

Corrosion Protection

For applications exposed to moisture and salt, XiaYi can combine suitable alloy materials with a protective coating system. The supplied coating specification reaches ≥80 μm and passes a 500-hour neutral salt spray test.

Applications

Passenger Vehicles and EVs

The Heat-Treated Alloy Steel Coil Springs can be used in passenger cars, SUVs and new energy vehicles where vehicle weight, battery load and repeated suspension movement require stable elastic support. Different alloy grades can be selected according to vehicle weight and suspension design.

Commercial Vehicles

For light and heavy commercial vehicles, spring selection needs to account for frequent loading changes and longer operating distances. Higher-strength alloy options can be used where greater fatigue resistance and load-bearing stability are required.

Construction Machinery

Excavators, loaders and other construction machinery experience frequent impact, vibration and load fluctuations. Chrome-vanadium alloy options provide higher toughness for these demanding operating conditions.

Application Cases

EV Suspension Upgrade

A mainstream domestic EV brand upgraded suspension springs for its battery-heavy SUV model. Original high-carbon steel springs produced obvious body sagging after 30,000 km, accompanied by severe side tilting during high-speed lane changes.

After switching to XiaYi chrome-silicon heat treated alloy coil springs, the vehicle showed no measurable body sagging after 90,000 km of road testing. Lateral roll stability also improved significantly, while the material maintained stable performance under the high-temperature operating conditions of the vehicle.

Loader Suspension Upgrade

A construction equipment manufacturer replaced imported springs with XiaYi chrome-vanadium alloy springs for gravel-site loaders. Original springs fractured within six months under frequent heavy impact.

The upgraded springs extended the average service cycle to over 15 months, reduced equipment maintenance replacement costs by 42%, and eliminated abnormal vibration noise during material loading and unloading operations.

Coastal Fleet Retrofit

A coastal city logistics fleet upgraded its delivery vans with XiaYi special alloy heat treated coil springs. Ordinary springs quickly rusted and lost elasticity under sea salt fog exposure, resulting in uneven tire wear and frequent brake nose-dive.

After replacement, the special alloy material combined with a 500-hour anti-corrosion coating helped address salt-fog corrosion. Stable elastic support under full cargo load reduced unilateral tire wear by 36%, lowering the fleet's tire replacement expenses.

FAQ

How to Choose the Alloy Grade?

The main factors are vehicle load, driving speed, suspension working frequency and environmental conditions. 60Si2Mn is suitable for daily passenger vehicles, chrome-silicon for high-frequency loading applications, chrome-vanadium for heavy-impact equipment, and special alloy grades for corrosive or low-temperature environments. XiaYi can recommend a material grade based on drawings, samples and load requirements.

How Long Is the Service Life?

Service life depends on material grade, vehicle load, road conditions, installation and operating frequency. The supplied fatigue test data ranges from 800,000 to 1.5 million cycles among the four alloy systems. Correct spring matching and regular suspension maintenance are important for achieving the expected service life.

Can Special Sizes Be Customized?

Yes. XiaYi supports customization of wire diameter, free length, outer diameter, coil pitch, spring stiffness and load parameters. Production can be based on customer drawings, samples or specified vehicle requirements, with heat treatment parameters adjusted according to the selected alloy and spring specification.

Quality and Supply

XiaYi has established a quality management system compliant with IATF 16949:2016, supporting standardized production and quality control for automotive suspension components. Raw material inspection, heat treatment monitoring, dimensional inspection and finished-product testing are incorporated into the production process.

XiaYi integrates alloy wire processing, heat treatment, forming, surface treatment and finished-product inspection within its production chain. The factory supports OEM customization, batch production and technical matching for vehicle manufacturers, auto parts suppliers, modification companies and construction machinery enterprises. Material inspection records and relevant test documents can be provided according to project requirements.
