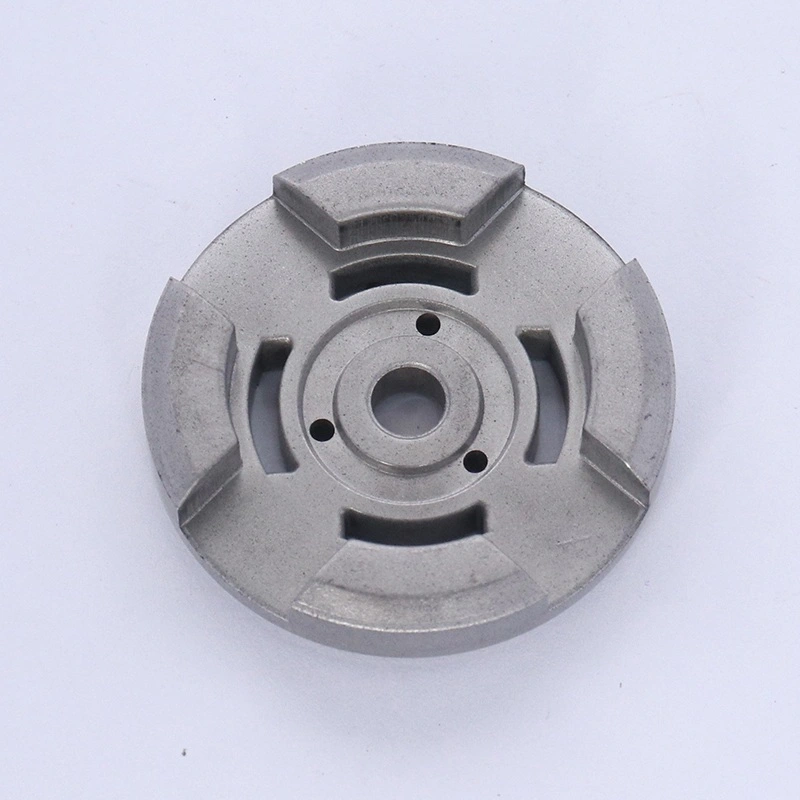

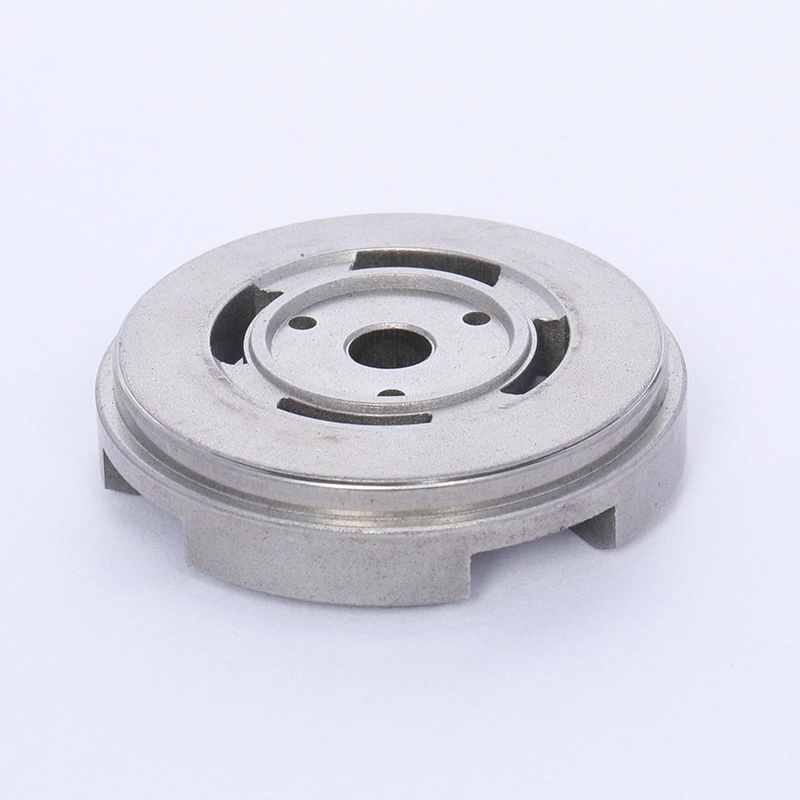

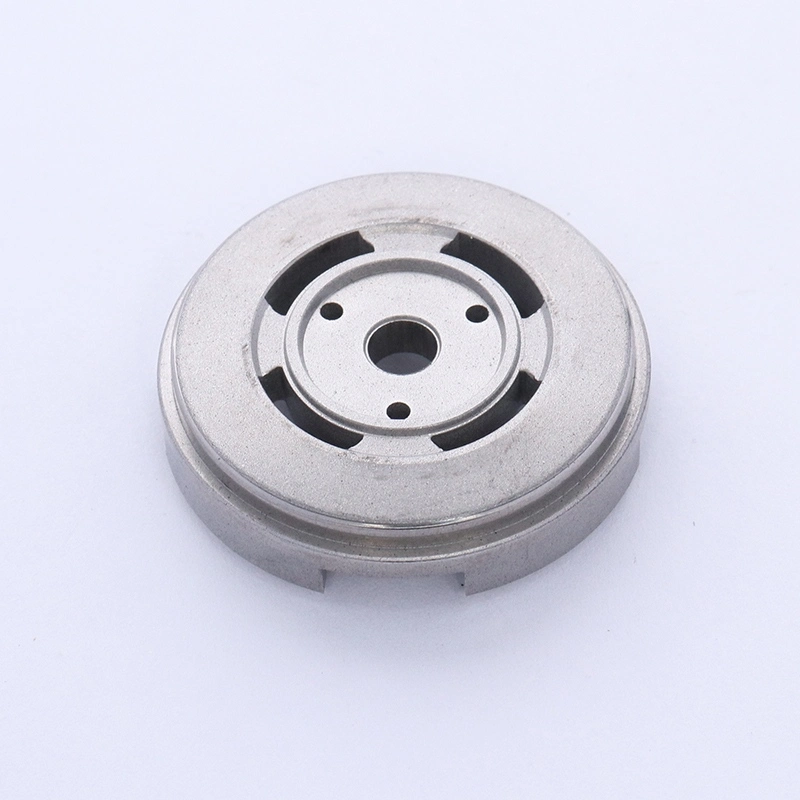

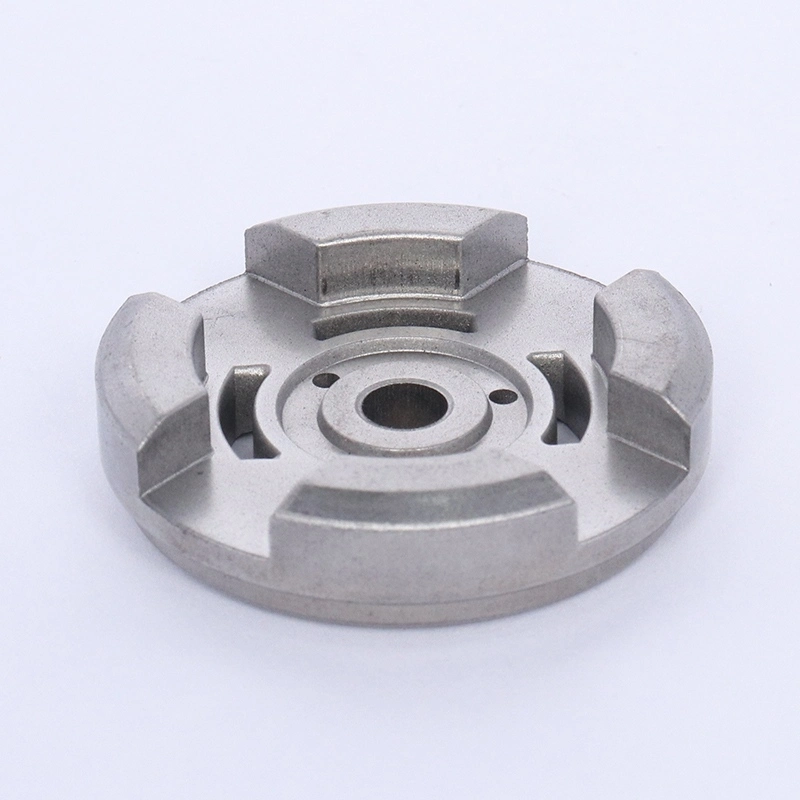

Deburr-Free Base Valve with Optimized Orifice Layout

XIAYI Deburr-Free Base Valve with Optimized Orifice Layout is a high-precision shock absorber component designed for automotive, motorcycle and electric vehicle suspension systems. By combining optimized hydraulic orifice design, powder metallurgy technology and deburr-free precision manufacturing, it improves oil flow stability, sealing performance and damping consistency.

With dimensional accuracy of ±0.005mm, sealing surface flatness ≤0.007mm and strict IATF 16949:2016 quality control, XIAYI provides reliable OEM/ODM base valve solutions for global shock absorber manufacturers seeking higher durability, lower failure rates and stable mass

Product Structure and Working Principle

The base valve is one of the core hydraulic control components of a shock absorber system. During vehicle operation, hydraulic oil flows through precisely designed orifices to generate damping force and control suspension movement. Therefore, the design accuracy of oil passages and the consistency of machining quality directly influence the overall shock absorber performance.

The Deburr-Free Base Valve with Optimized Orifice Layout uses optimized orifice distribution technology to improve hydraulic flow balance. Through structural simulation and precision design, the oil pressure distribution inside the valve is optimized, reducing turbulence and unstable damping caused by irregular flow channels.

Compared with conventional base valves produced through ordinary machining methods, XIAYI products provide improved cleanliness, better sealing performance and more stable batch consistency, making them suitable for high-standard automotive, motorcycle and electric vehicle shock absorber applications.

Core Product Advantages

Optimized Orifice Layout Improves Damping Stability

The size, quantity and position of internal orifices directly affect hydraulic resistance and damping response. XIAYI applies hydraulic flow analysis and precision structural optimization to achieve a more balanced oil flow path.

The optimized design reduces local pressure differences and improves damping force consistency during different driving conditions. Whether operating on smooth highways or uneven roads, the product helps shock absorbers maintain smoother response and better vibration control.

Deburr-Free Manufacturing Reduces Performance Risks

Tiny burrs remaining inside oil passages can cause unexpected problems such as restricted oil flow, sealing damage and abnormal noise during long-term operation.

XIAYI integrates precision forming, CNC double-face grinding and ultrasonic cleaning technologies to achieve a deburr-free production process. The internal orifice channels and sealing surfaces are free from residual metal particles and processing contamination.

The sealing surface flatness can reach ≤0.007mm, effectively reducing oil leakage risks and improving assembly reliability.

High Precision Powder Metallurgy Ensures Durability

Material density and structural strength are essential for shock absorber components exposed to continuous vibration and changing loads.

XIAYI uses high-quality iron powder alloy materials combined with high-temperature sintering technology to achieve uniform internal density and stable mechanical properties.

The product dimensional accuracy can reach ±0.005mm, with hardness controlled between HRB 60-100, providing excellent wear resistance and structural stability under long-term operating conditions.

Full Process Quality Control for OEM Requirements

Automotive customers require stable quality, complete traceability and consistent product performance. XIAYI implements IATF 16949:2016 quality management standards throughout the manufacturing process.

From raw material inspection, automatic material mixing and precision forming to final inspection and packaging, every production stage is strictly controlled to ensure reliable product quality for global OEM customers.

Product Technical Parameters

Production & Testing Equipment Parameters

Testing Equipment & Quality Control

Customer Pain Points & XIAYI Solutions

Real Application Case

A German high-end motorcycle shock absorber brand previously experienced unstable damping performance and slight oil leakage problems in medium-displacement motorcycle suspension systems.

The traditional base valve used ordinary drilling and post-deburring processes. During long-term operation, tiny burrs remained inside the orifices, causing uneven hydraulic flow distribution, damping fluctuation during high-speed riding and increased after-sales maintenance requirements.

After cooperation with XIAYI, the customer adopted the Deburr-Free Base Valve with Optimized Orifice Layout. Through customized orifice layout optimization and full-process deburr-free manufacturing, the product achieved stable hydraulic oil flow and eliminated burr-related defects.

After 20,000 reciprocating fatigue tests and 240 hours of salt spray testing, the shock absorber showed no oil leakage, no abnormal noise and stable damping output.

The customer's product failure rate decreased from 1.2% to less than 0.1%, after-sales maintenance costs were reduced by 65%, and XIAYI became a long-term partner with an annual supply volume exceeding 80,000 pieces.

Product Applications

The Deburr-Free Base Valve with Optimized Orifice Layout is widely used in automotive hydraulic shock absorber systems, motorcycle suspension systems, electric vehicle damping systems and high-performance suspension applications. Designed for manufacturers requiring precise hydraulic control, stable damping performance and long-term reliability, this product is suitable for various vehicle conditions including daily commuting, commercial transportation, high-frequency vibration environments and complex road conditions.

By providing consistent oil flow control, excellent sealing performance and reliable structural strength, XIAYI helps global shock absorber manufacturers improve product quality and enhance the overall performance of suspension systems.

Frequently Asked Questions

Q1: What is the difference between XIAYI base valves and traditional products?

Traditional base valves may rely on post-processing deburring, which can leave small burrs affecting hydraulic flow and sealing performance. XIAYI combines optimized orifice design with deburr-free precision manufacturing to achieve cleaner flow channels, stable damping output and improved durability.

Q2: Can XIAYI provide customized base valve solutions?

Yes. XIAYI supports OEM and ODM customization according to customer requirements, including orifice quantity, aperture size, layout position, structural dimensions and damping performance requirements.

Q3: Which shock absorber systems are suitable for this product?

This product is suitable for automotive, motorcycle and electric vehicle hydraulic shock absorber systems, especially applications requiring high precision, stable performance and long-term reliability.

XIAYI Manufacturing Capability

With strong R&D capabilities, patented manufacturing technologies and advanced automated production systems, XIAYI focuses on providing precision shock absorber components for global automotive customers.

Supported by IATF 16949:2016 quality management standards, professional production equipment and complete inspection capabilities, XIAYI delivers reliable base valve solutions and customized OEM/ODM services for international shock absorber manufacturers.
